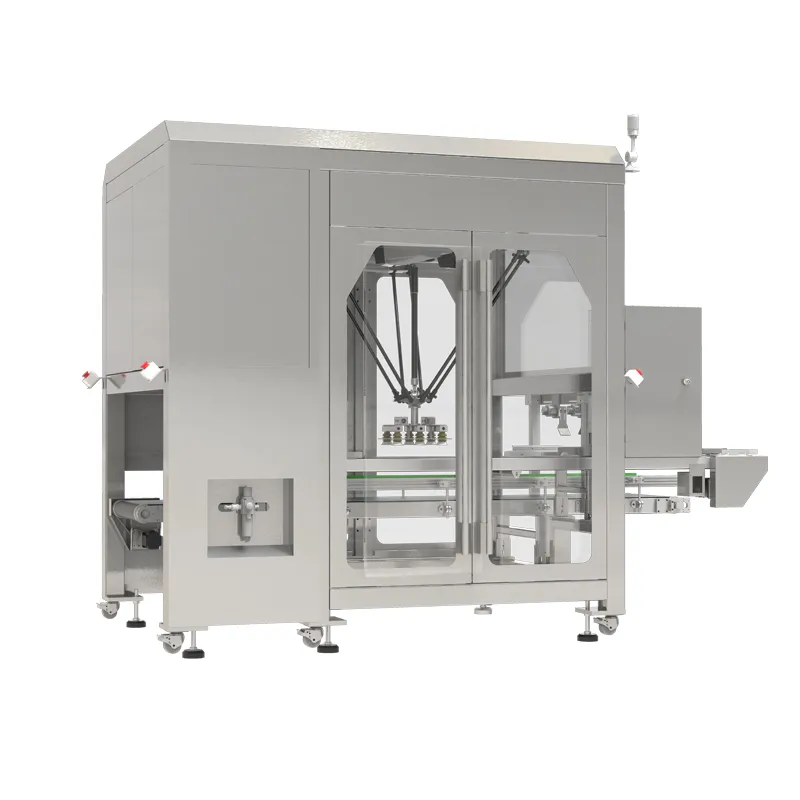

The single delta packing machine is a fully automatic device that achieves quantitative and orderly packing of products. It utilizes a vision system and control system independently developed by Tirimi. Once the device is started with one click, it can control the delta robot to quickly and accurately identify product locations and complete a series of actions such as grabbing and packing. The entire machine features a modular design, allowing for compatibility with different materials and packing requirements by replacing various parallel robots and grippers, making it an essential piece of equipment for automated production.

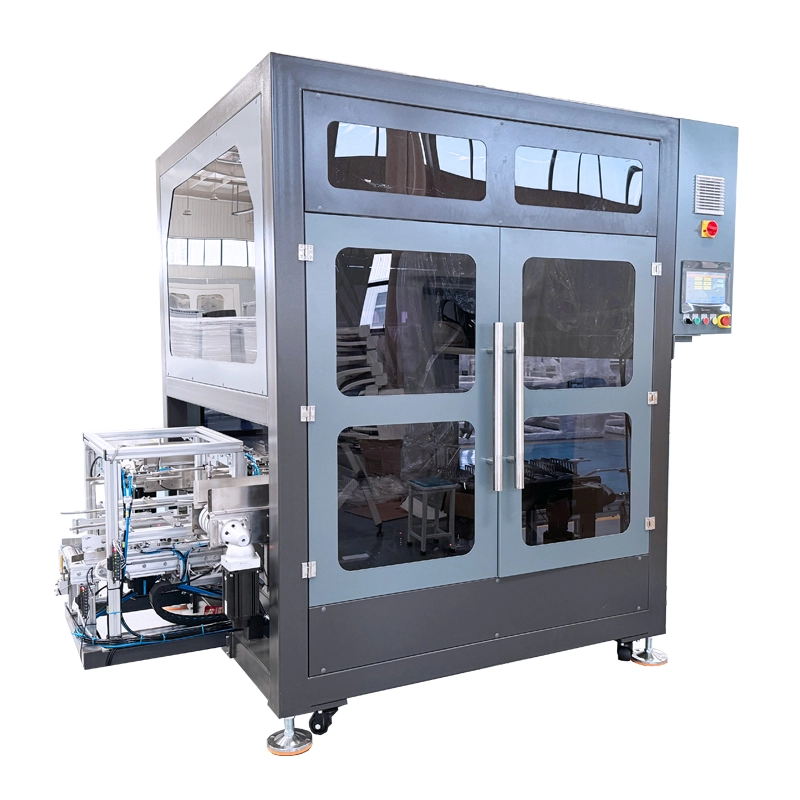

RPS-01S Packing workstation | |
Model | RPS-01S |
Robot model | BAT600M-E3 |
Power supply | Single-phase AC220V±10%, 50/60hz |
Main material | Carbon steel spray/Stainless steel (optional) |
Size | 2750*1200*2100mm |
Power | 4.5kw |
Air source | 0.6~0.8MPa |
Packing speed | Maximum 100 times/min |
Work environment | temperature：-10℃~+40℃, humidity：40%~80% |
Machine weight | ≤1000kg |
Applicable product individual weight | ＜1kg |
Applicable carton size | Maximum：400*200*200mm Minimum：200*150*115mm (Customization in size range) |
Applicable product category | Light material |
One-button start, simple operation.
It'll stop as soon as the door opens, ensuring safety for worry-free production.
High degree of freedom, the robotic arm can achieve flexible grabbing and placement.
Interactive human-machine interface, intuitive operation.
Fully automated operation for unmanned processes.
Quick changeover for flexible production; robots are compatible with various quick-change grippers to meet different packaging requirements.
Wide application, extensively used in food, pharmaceuticals, electronics, and daily chemicals.
