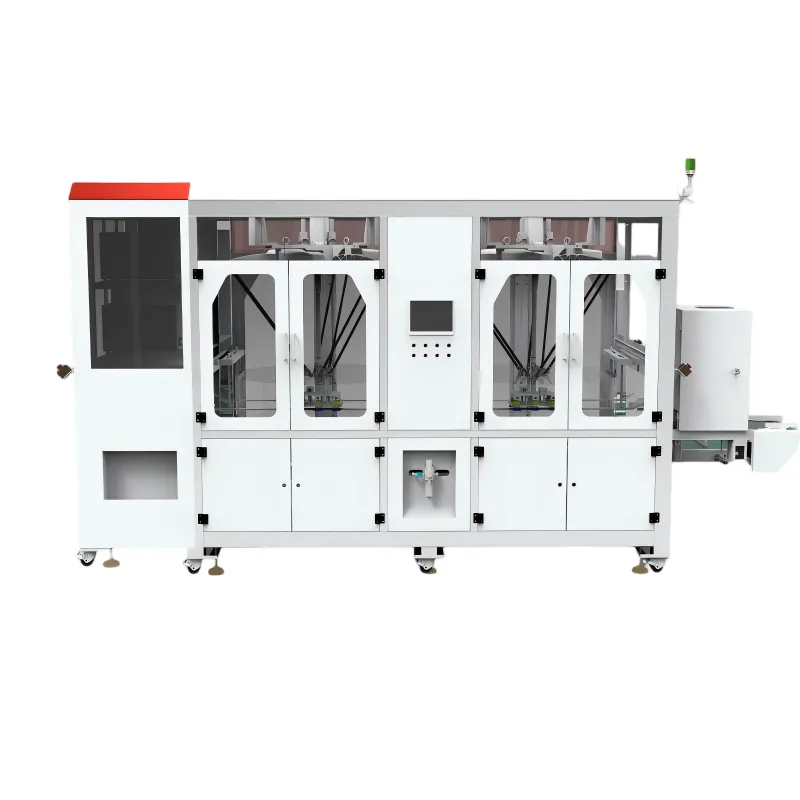

The Tirimi RPS-03D is a high-speed packing workstation based on visual recognition, designed to achieve intelligent and automated product packaging processes. The system uses multiple Delta robots working in tandem to accurately identify and pick up products in any orientation on a high-speed conveyor belt, then efficiently pack them into various packaging containers such as pallets, cardboard boxes, or display boxes. The system is equipped with advanced visual inspection technology, enabling automatic identification of product position and orientation, and supports various packing modes such as mixed stacking, significantly enhancing the flexibility and efficiency of the packaging line. The RPS-03D can also be seamlessly integrated with Tirimi forming machines, box sealers, and palletizers, forming a complete automated packaging production line to meet the modern manufacturing industry's demand for efficient continuous operation.
The RPS-03D packing workstation is suitable for industries such as food, beverages, cosmetics, pet food, and coffee, meeting the demand for high-speed automated packaging in these industries. Through robotic automation technology, the system can significantly improve production efficiency and reduce operating costs. At the same time, it supports random orientation packing of products of multiple specifications, greatly improving the flexibility of the production line and reducing dependence on manual operations. The RPS-03D brings high flexibility and reliability to modern packaging production lines, offering an intelligent solution for enhancing production capacity and quality.
| Maximum processing capacity: Each robot can process up to 100 pieces per minute, and the total processing capacity of the system can reach 600 pieces per minute. | ||
| High-speed feeding | Up to 45 boxes per minute. | Typical efficiency is 40-80%. |
| Quick changeover | No tools required; packaging specification changes can be completed in just 5 minutes. | |
| Packaging type | Supports various packaging formats such as cartons and pallets. | |
| Discharge direction | Supports both straight-line and reverse discharge. | |
| Equipment dimensions | Minimum system dimensions: 2,850 mm in length, 2,200 mm in width, and 3,600 mm in height | |
| Power requirements | 480V AC, 50/60Hz, 30A | |
| Air supply requirements | 20 SCFM @ 80 PSI | |
| Control system | Tirimi dedicated industrial control platform, integrating PLC and touchscreen HMI | |
| Safety rating | Complies with Category III safety system standards | |
| Status display | Equipped with high-brightness LED operational status indicators for real-time feedback on equipment status. | |
| Additional functions | Features include collision detection, automatic rejection of defective products, tool-free quick changeover, and an optional camera dust cover. | |
The RPS-03D packing workstation integrates advanced automation technology to provide a high-speed, highly reliable intelligent packing solution. The system uses multiple Delta robots working in tandem to pick up and sort products in any direction on the conveyor belt through autonomous visual recognition. Tirimi's independently developed control system provides stable operation and a user-friendly human-machine interface. The following are the main technical features of the system:
Multi-robot high-speed flexibility: Multiple Delta robots work in tandem, offering high picking speeds and flexible paths, significantly enhancing packing efficiency.
Autonomous control system: Utilizes Tirimi's proprietary control platform, integrating high-performance programmable logic controllers (PLCs) and human-machine interfaces (HMIs) to ensure stable system operation and simplify operations.
Intelligent visual recognition: The visual system accurately identifies product location and orientation, supports mixed stacking, and adapts to products in any random direction, enabling rapid sorting and packing.
Reflex multi-item grasping: Incorporates Reflex-style multi-item grasping logic, allowing the robot to grasp multiple products simultaneously in each cycle, further increasing packing throughput.
High-Speed and High-Reliability: The system is designed to meet 24/7 continuous operation requirements, ensuring high reliability even at high speeds and minimizing downtime.
Fully Integrated: Seamlessly integrates with Tirimi forming machines, case sealers, palletizers, and other equipment to build an integrated automated packaging solution from case forming to palletizing.
