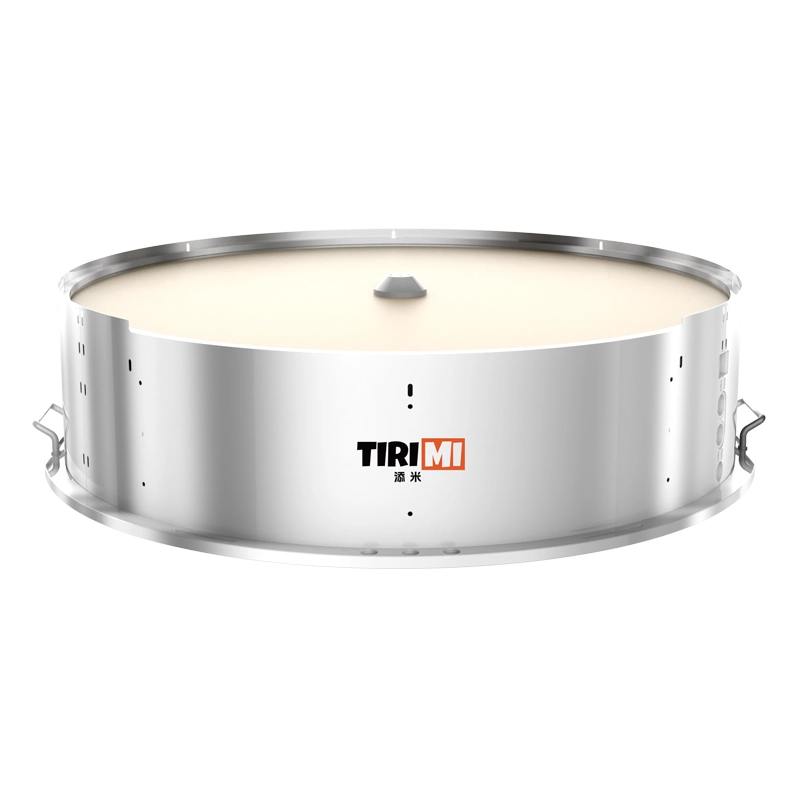

Discover the TIFL‑1000 flexible vibratory bowl feeder, an intelligent parts feeding solution designed to elevate automation efficiency in modern manufacturing environments. Engineered for precise part orientation, high‑speed sorting, and seamless integration with robotics and vision systems, the TIFL‑1000 delivers reliable performance across automotive, electronics, and industrial production lines. When evaluating vibratory bowl feeder price, the TIFL‑1000 stands out as a cost‑effective choice, combining advanced flexibility with durable construction to help manufacturers reduce downtime, improve throughput, and maximize return on investment. Explore how this innovative feeder system can optimize your production workflow while offering competitive pricing and exceptional value.

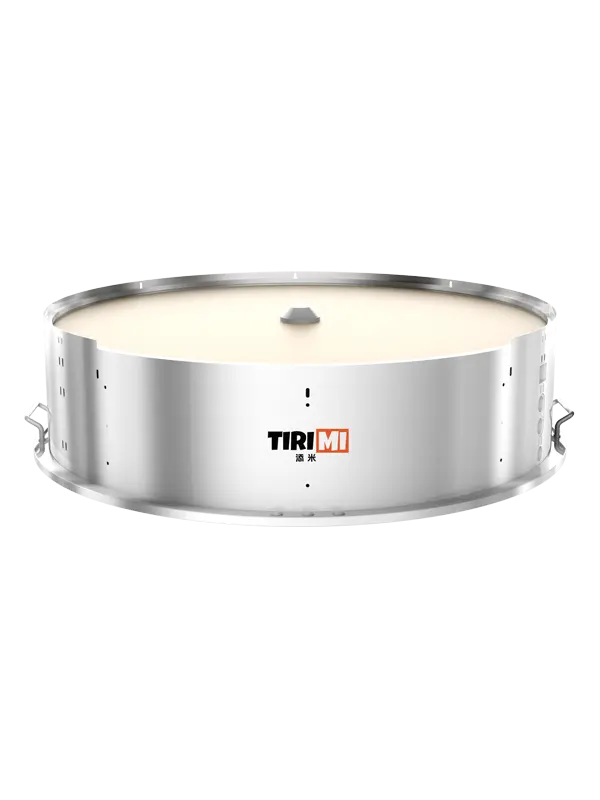

Part size: 30<X<250mm
Part weight: <280g
Backlight area: 800mm²
Load capacity: 8kg
Bulk feeder load capacity: 40/60dm³
External dimensions: 1060x275mm
Picking height: 250mm
Installation temperature: 1-45℃
Installation position: Table mounting
Air pressure (dry and filtered): 5-6bar-φ6mm/tubes (optional)
Electronic power supply: 110-230VAC(optional)
Data connection: Ethernet IP, Digital I/O, TCP/IP-UDP, other gateways
