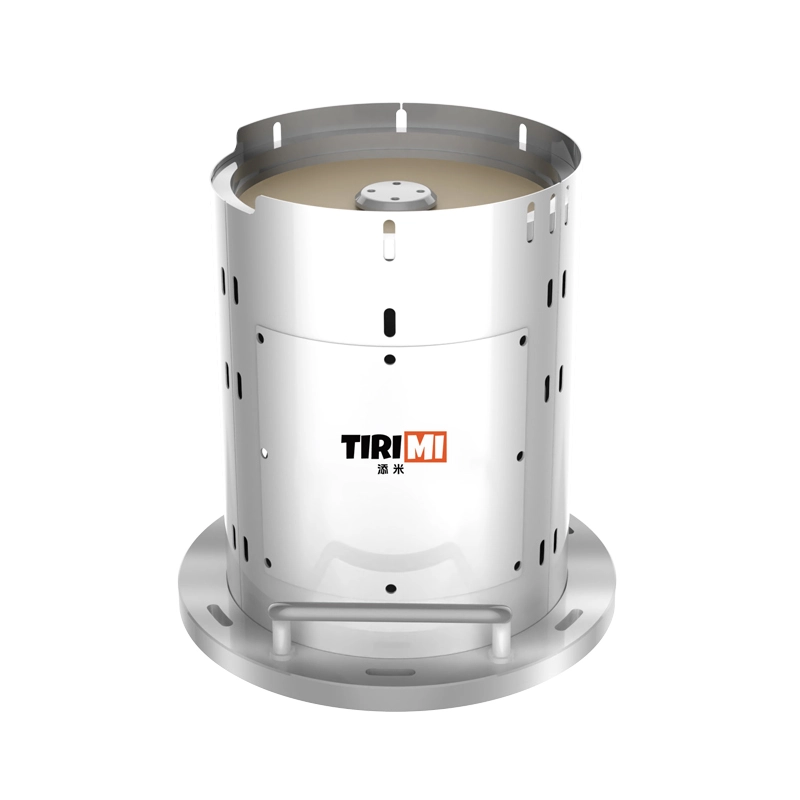

The Tirimi TiFL-200 is a high-performance flexible feeding system designed specifically for automated loading, unloading, and sorting operations. It can accurately handle bulk parts of various sizes, shapes, and materials. Its unique disc vibration structure, combined with advanced coordinated motion algorithms, enables seamless integration with vision systems and robots, achieving continuous, high-speed, and stable part separation and orientation.
The TiFL-200 is compatible with parts made from materials such as plastic, metal, rubber, and silicone, and is particularly suitable for small, lightweight components with dimensions between 1 and 50 mm and a weight of up to 150 g. It is an ideal replacement for traditional vibrating feeders.
Part size: 1<X<10mm
Part weight: <20g
Backlight area: 150mm²
Load capacity: 0.75kg
Bulk feeder load capacity: 1dm³
External dimensions: 260x275mm
Picking height: 200mm
Installation temperature: 1-45℃
Installation position: Table mounting
Air pressure (dry and filtered): 5bar-φ6mm tubes (optional)
Electronic power supply: 110-230VAC(optional)
Red backlight wavelength: 630nm
Infrared backlight wavelength: 850nm
Data connection: Ethernet IP, Digital I/O, TCP/IP-UDP, other gateways
High versatility: Suitable for feeding parts of various irregular shapes and materials.
Quick changeover: No mechanical adjustments required; product changeover can be completed by switching parameters.
High compatibility: Can be easily integrated with industrial robots and vision systems.
Low noise and low wear: Runs smoothly and quietly, with low maintenance costs.
Intelligent control: Supports multiple communication protocols, easily integrating into automated production lines.
The Tirimi TiFL-200 is widely used in industries such as 3C electronics, automotive parts, medical devices, plastic products, and daily consumer goods, serving as a crucial equipment module for achieving flexible manufacturing and smart factory upgrades.
