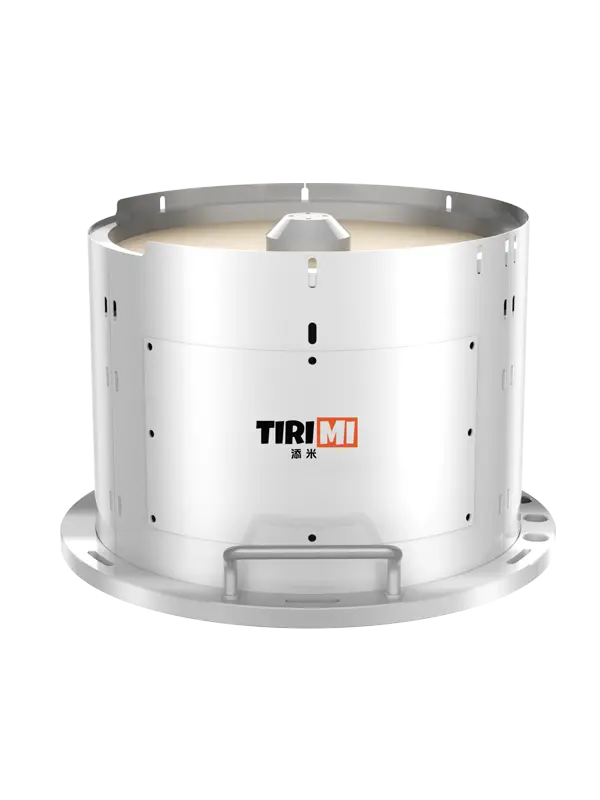

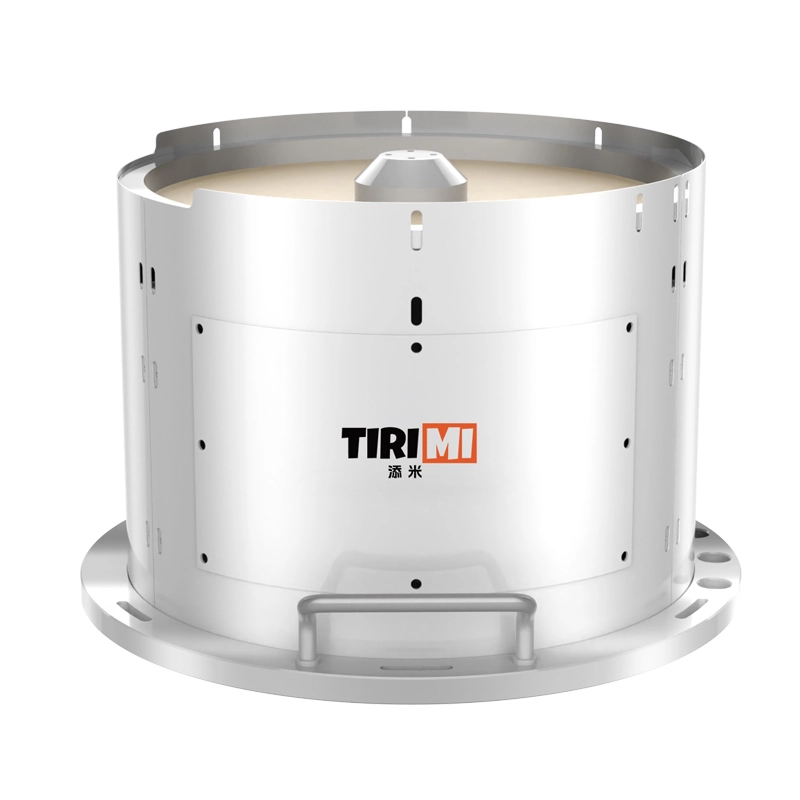

The Tirimi TiFL-350 is a flexible feeding system designed for the automatic feeding of medium-sized parts. It features an innovative rotating disc + vibration structure, integrated with robots and vision systems, to achieve fast, precise, and intelligent part sorting and feeding. Compared to traditional vibrating feeders, the TiFL-350 supports a wider range of part shapes, sizes, and materials, offers faster changeovers, and operates more stably, making it an indispensable key component for flexible production lines.
TiFL-350 is particularly suitable for medium-sized parts ranging in size from 5 mm to 110 mm and weighing no more than 250 g. It is compatible with materials such as plastic, metal, silicone, and rubber, and is widely used in industries such as automotive parts, home appliance assembly, medical devices, and electronics manufacturing.
Part size: 1<X<20mm
Part weight: <40g
Backlight area: 275mm²
Load capacity: 2kg
Bulk feeder load capacity: 4/8dm³
External dimensions: 410x275mm
Picking height: 200mm
Installation temperature: 1-45℃
Installation position: Table mounting
Air pressure (dry and filtered): 5bar-φ6mm tubes (optional)
Electronic power supply: 110-230VAC(optional)
Data connection: Ethernet IP, Digital I/O, TCP/IP-UDP, other gateways
