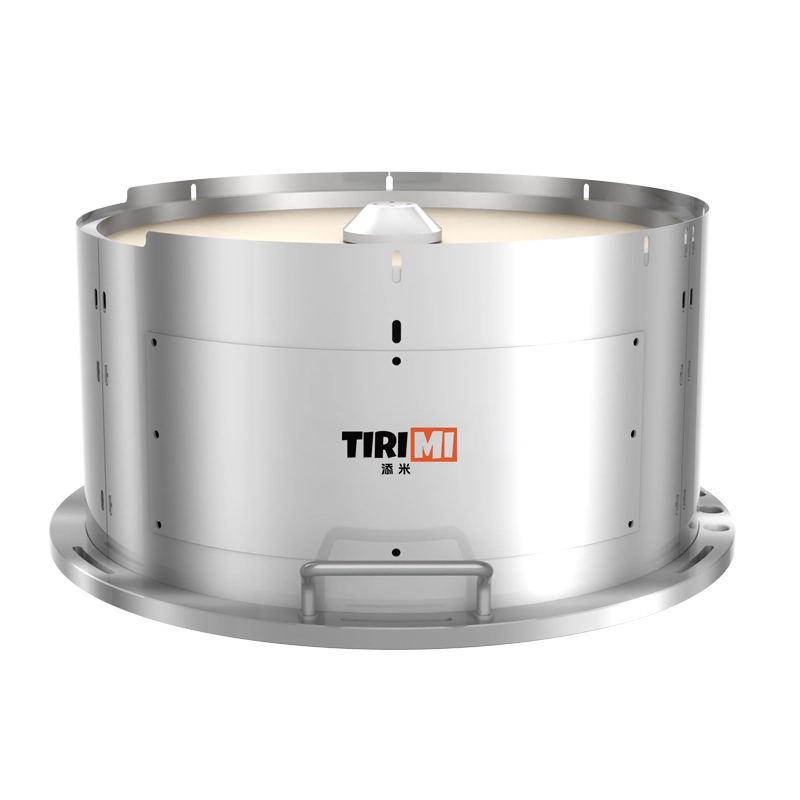

The Tirimi TiFL-F500 and 500e series are specifically designed for large-sized parts, utilizing advanced rotary vibration feeding technology to deliver exceptional flexibility and efficiency. They are capable of handling parts with dimensions up to 200mm and weights of several kilograms, meeting the automated feeding requirements for large parts in industries such as automotive, home appliances, and industrial manufacturing.
Through an intelligent control system, the TiFL-F500 series enables rapid changeover and diverse part sorting. When integrated with vision inspection and robots, it achieves precise positioning and continuous feeding, significantly improving production efficiency and reducing labor costs. The 500e model features energy-saving and environmentally friendly characteristics, optimizing operational noise and energy consumption performance.

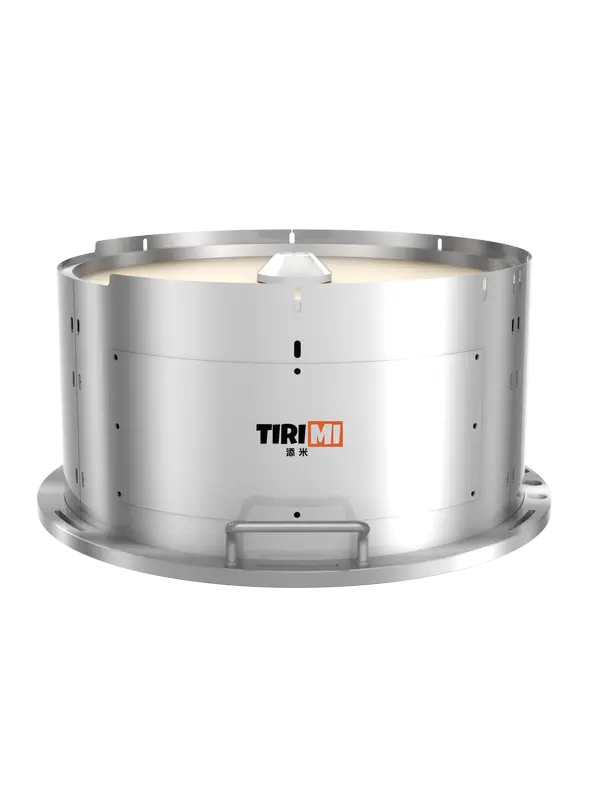

Part size: 5<X<50mm/1<X<50mm
Part weight: <100g
Backlight area: 400mm²
Load capacity: 5kg
Bulk feeder load capacity: 10/20dm³
External dimensions: 560x275mm
Picking height: 220mm
Installation temperature: 1-45℃
Installation position: Table mounting
Air pressure (dry and filtered): 5bar-tuboφ6mm/6bar-φ6 mm tubes (optional)
Electronic power supply: 110-230VAC(optional)
Data connection: Ethernet IP, Digital I/O, TCP/IP-UDP
