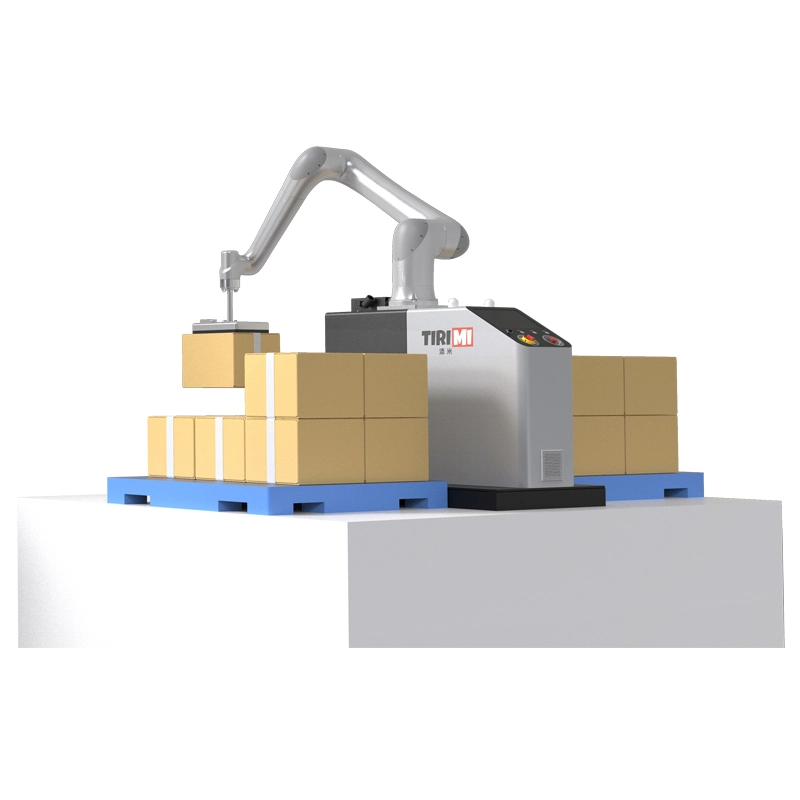

TiPL-PAR14 is your ideal choice for efficient, lightweight palletizing tasks. With a 2047mm extended reach and a payload capacity of up to 17kg, it delivers a powerful combination of speed (up to 13 boxes/min) and accuracy (±0.05mm). The compact 2m² footprint ensures space-efficient deployment, while the IP67-rated body withstands demanding industrial environments. Whether you're handling cartons or smooth-surfaced goods, TiPL-PAR14 provides safe, smart, and seamless palletizing integration into your production line.
| Model | TiPL-PAR14 |
| Maximum payload*(including end suction cup) | 17kg |
| Maximum working radius | 2047mm |
| Maximum pallet size | 1400x1400mm |
| Maximum palletizing speed * | 9-13 boxes/min |
| Maximum joint speed | Axis 1/2/3:120/s, Axis 4/5:234/s |
| Maximum palletizing height*(including pallet) | 1950mm |
| Repetitive positioning accuracy | ±0.05mm |
| Communication method | TCP/IP, Modbus TCP, EtherCAT, Profinet, Ethernet/P, DeviceNet, CC-Link, CC-LinkIE Field Basic |
| I/O quantity | 32 digital inputs, 32 digital outputs |
| IP protection level | Robot body: IP67, Others: IP32 |
| Temperature range | 0-50℃ |
| Air source | 0.5-0.8Mpa,consumption:400L/min |
| Power supply | AC200-240V, 50Hz |
| Total power | 2.5kw |
| Total weight* | About 360kg |
| Footprint | 1300x1667mm |
| Compatible product sizes | L(250-550)mmxW(200-500)mmxH(150-400)mm.For special sizes, a suction cup needs to be adapted. |
| Compatible product surfaces | Ordinary carton surfaces, various smooth surfaces, various metal surfaces |
| Safety functions | Supports collision detection, virtual walls, collaborative mode, and 21+ adjustable safety functions. |
| Certifications | S013849-1/PLd, IS010218-1, ISO/TS 15066, IS012100, EU CE certification, NSF certifcation |
*When equipped with the standard end suction cup, the maximum payload is either 14kg or 21 kg.
*Actual palletizing speed depends on product weight, size, and stack type.
*Actual palletizing height depends on product size, stack type, and gripper type.
*Total weight includes both the robot and end suction cup.
17kg payload, 2047mm working radius.
Max palletizing height: 1950mm.
Drag teaching & one-click start for easy operation.
21+ safety functions, CE/UL/ISO certified.
