TARGET OF AUTOMATION:
Pack 3600 cans per hour, each can weighing approximately 1094 grams
Design the overall conveyor system and packing system
Install a palletising robot at the end after packing
The entire unit is made of 304 stainless steel material.
It includes unpacking, sorting, packing, and palletising mechanisms.

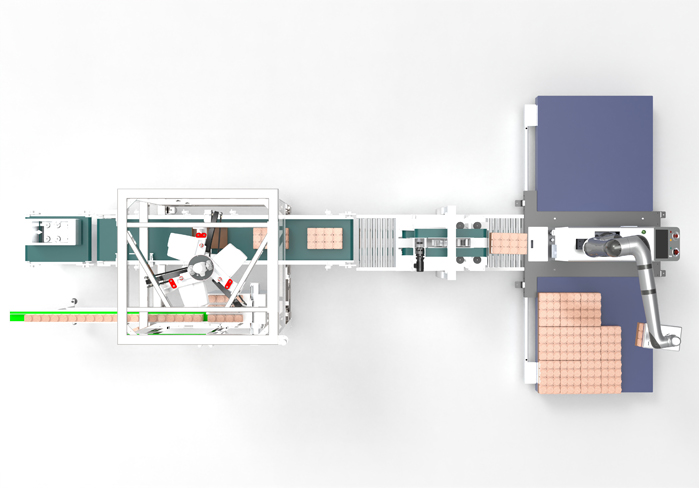

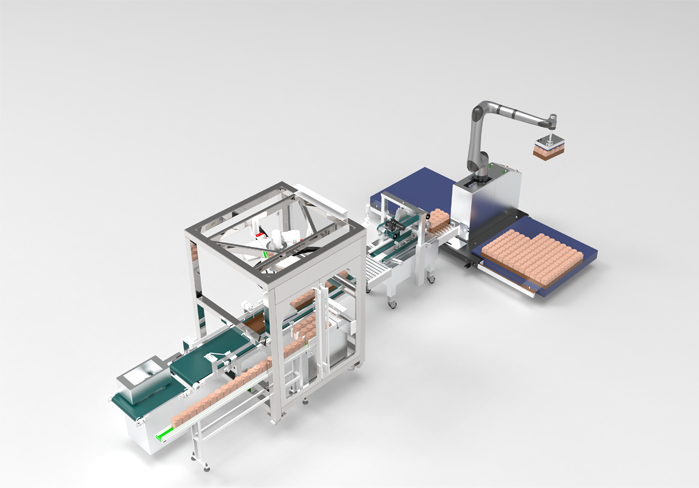

Robot packing and palletising workstations
Manually place the cans on the labelling line, after labelling they flow onto the sorting conveyor belt
The box storage device opens the boxes, waiting for the robot to pick them up
The sorting mechanism arranges the cans in a 3*4 display for the robot to pack into boxes
After packing, they flow into the sealing machine for sealing
The stacking robot performs palletising

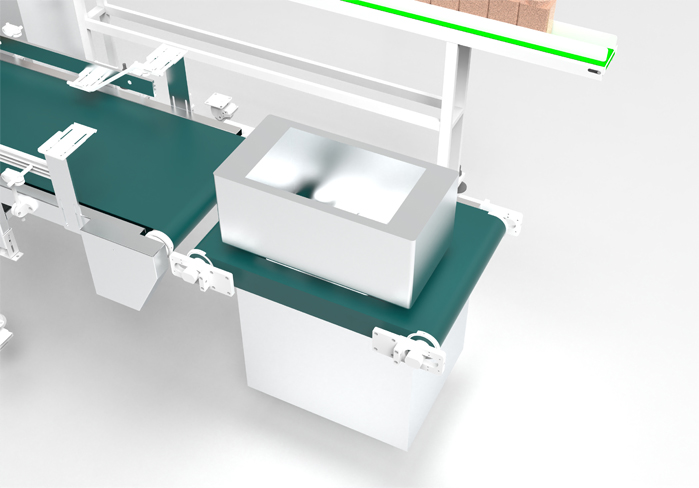

The silo has a capacity to hold 100 cartons and can be customised.
The cylinder controls the folding ears to open the cartons. If cartons need to be changed later, a standard carton opener can be used for opening.
